NDI Touch Broadcast Switcher

$4,999.00$5,499.00

NDI Touch Broadcast Switcher / Touch Broadcast Switcher
8 channels, Live Broadcast Switcher, PTZ camera control

Feature:

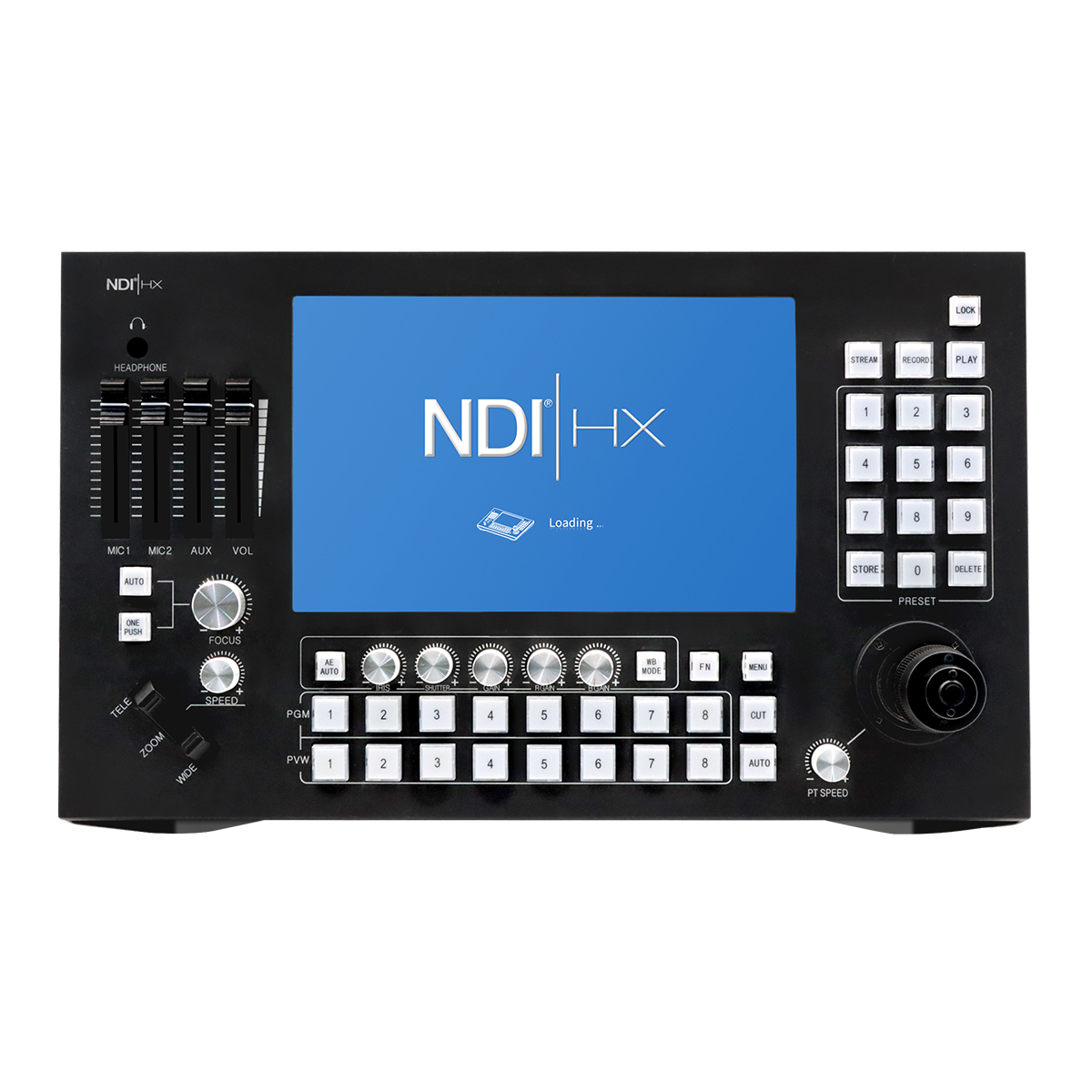

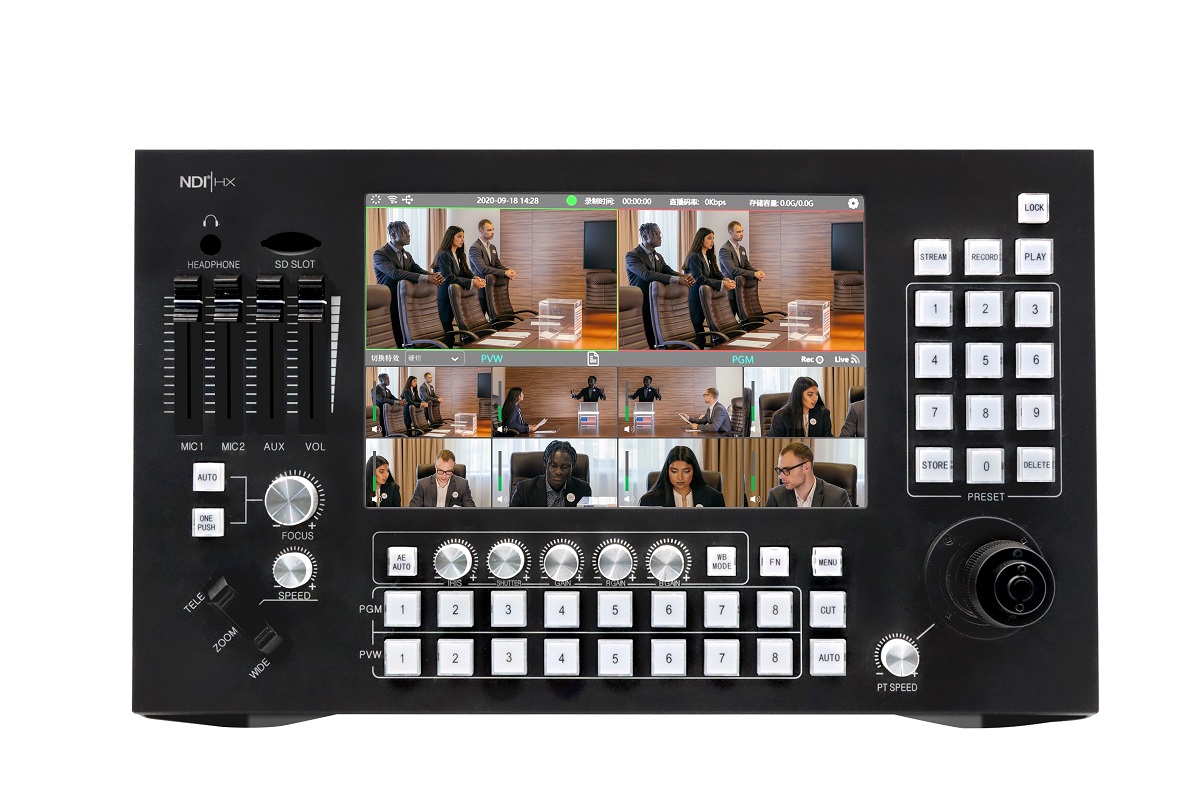

  • [USER FRIENDLY] High-definition touch display, the body integrates a 10.1-inch high-definition display, making it user-friendly
  • [SIMPLICITY] Live Broadcast Stream Control, Audio Levels, & Support PTZ control of the camera
  • [APPLICATIONS] Multi-camera including PTZ live streaming or recording of; worship services, esports, educational, training, music, entertainment, video blog, state/local/town government meetings, and more
  • [BROADCAST] Direct live streaming to cloud services or other applications via RTSP/RTMP/NDI|HX protocols, HDMI Output is also available for chaining to another workflow
  • [SWITCHER] Production of Live events is simplified with the view of up to 8 inputs with Preview and Program capabilities and ability to switch between those on the live program
  • [PTZ CONTROLS] PTZ Joystick with speed control, Presets, Zoom with speed control, Auto/Manual Focus with speed control, White Balance (IRIS, Shutter, Gain, RGAIN, BGAIN)

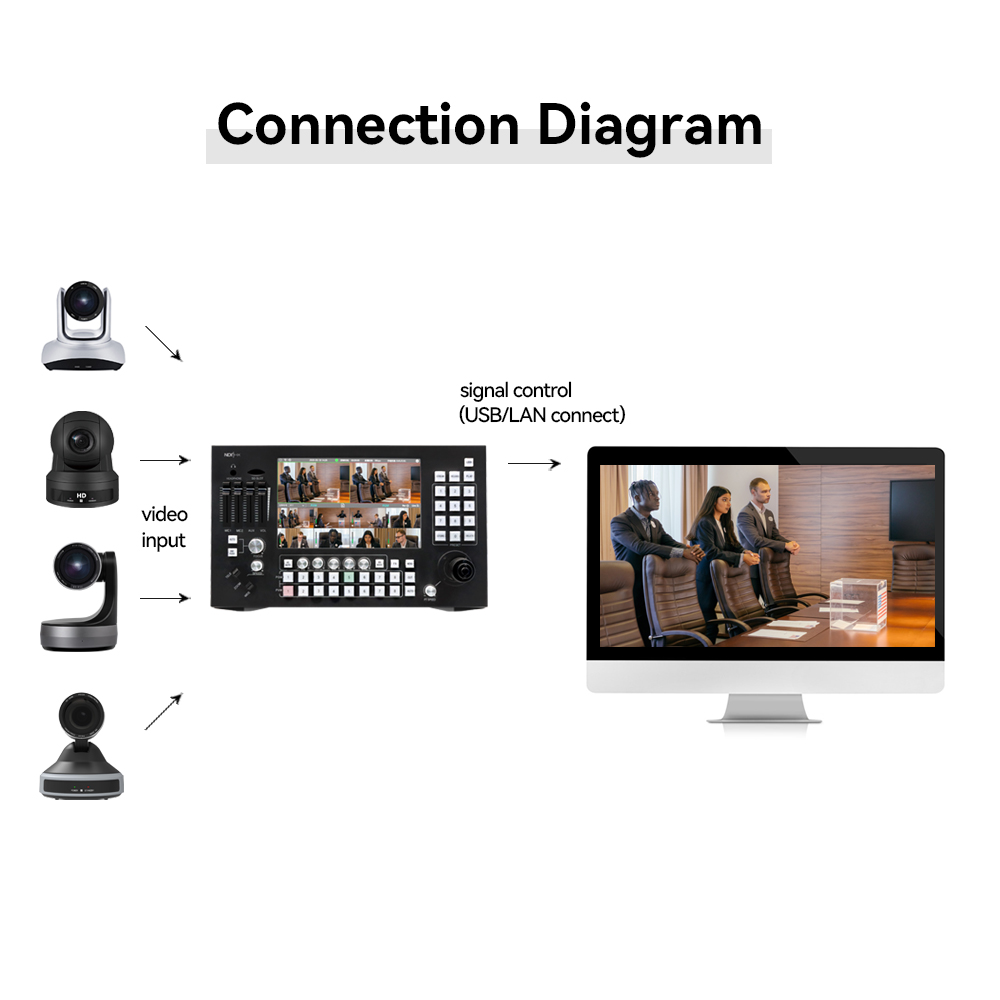

  • [POWERFUL] Multi-channel input up to 8 channels of 1080p60 video input, with IP/NDI cameras you can start your live broadcast with only one network cable
  • [NDI SUPPORT] Support multi-protocol, support the access and output of video via the methods of network, HDMI or local file, support mainstream live streaming protocol, NDI|HX
  • [AUDIO MIXER] Integrated mixer, support 4-channel mixer, support multiple audio input and output methods

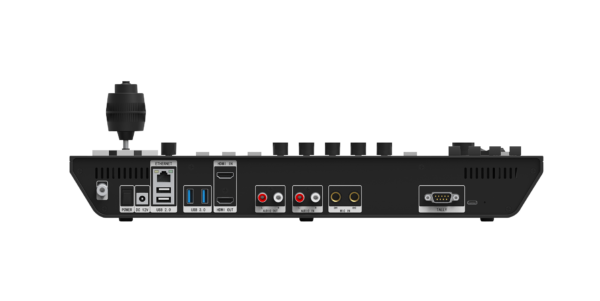

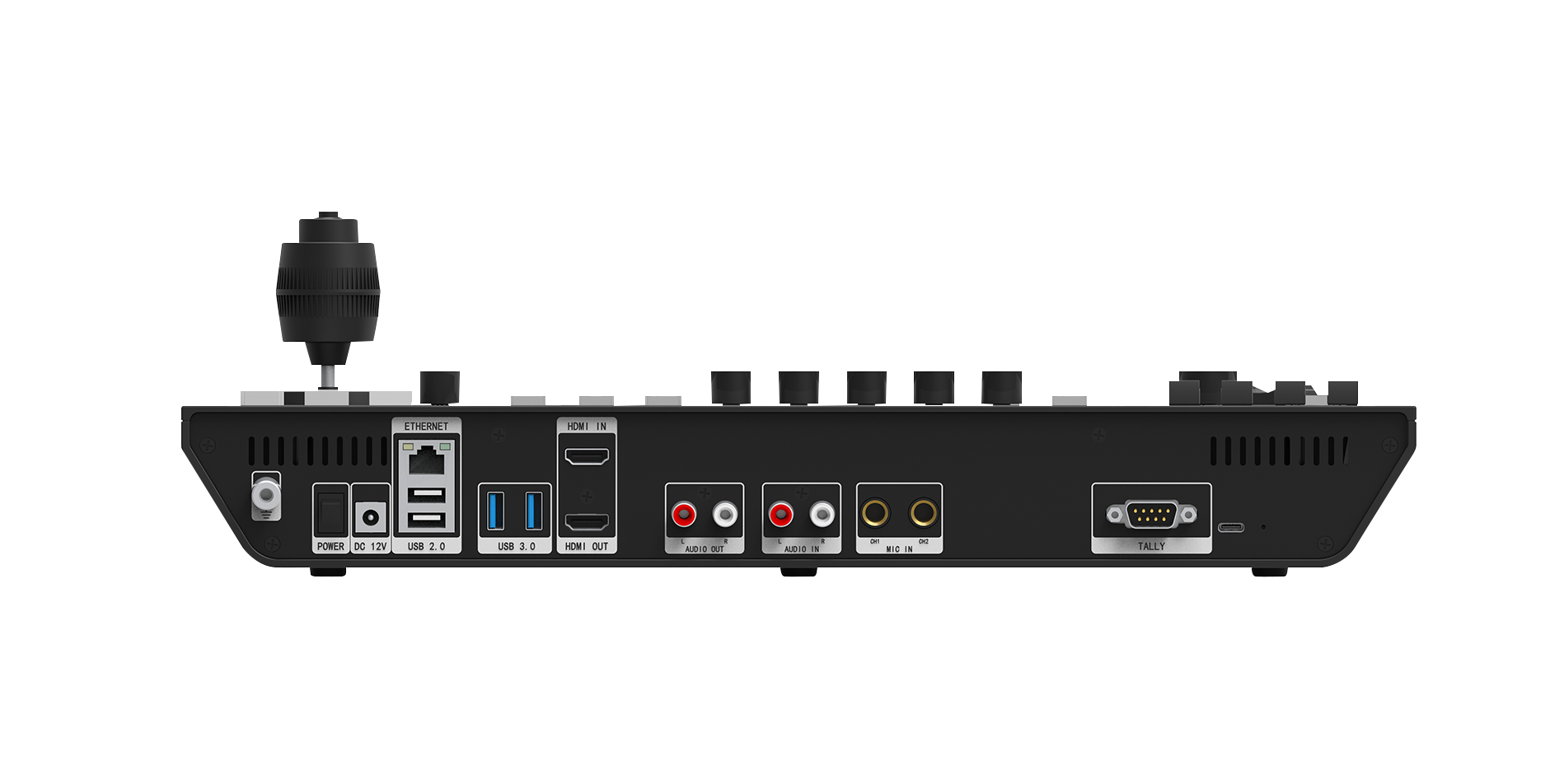

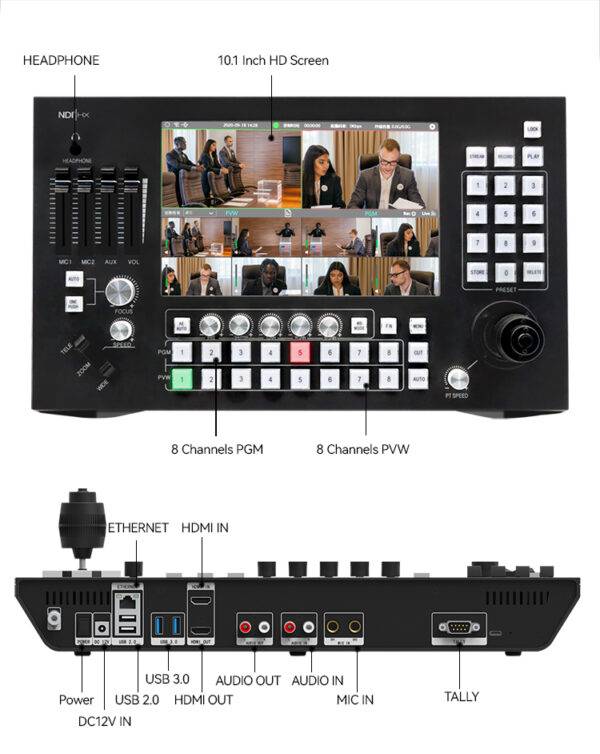

  • [INPUTS] 1 Local HDMI, up to 8 NDI & RTMP devices, and Local Video Files (Injecting pre-recorded content), 2 @ USB 2.0, 2 @ USB 3.0, AUDIO IN, MIC IN
  • [OUTPUT] Local HDMI Out (Program), Stream RTMP/RTSP, NDI|HX, TALLY, AUDIO OUT
  • [TRANSITIONS] A variety of transition special effects, support for multiple transition special effects such as fade in and fade out
  • [ON-SCREEN TEXT/GRAPHICS] Custom overlay content; subtitle text and logos

Description

PREORDER SPECIAL SAVINGs

NDI TOUCH BROADCAST SWITCHER - PRE-ORDER SPECIAL SAVE!

The World’s First User Friendly Touch Screen NDI|HX Switcher, go worry free! Everything you need to control your PTZ Cameras and Live Video broadcast via NDI or RTMP/RTSP. Using the 10.1″ HD Touch Screen, you get world class control over your broadcast content. Run your Live Stream or record for future broadcast with this powerful broadcast switcher. A variety of transition special effects, support for multiple transition special effects such as fade in and fade out. Supports custom overlay content; subtitle text and logos.

Run your Live Stream or record for future broadcast with this powerful Switcher. Broadcasts can be sent directly from this device to your CDN via RTMP. The touch screen control makes this the easiest device. Take full control and mix your Audio with the included sliders. Operate your PTZ Camera with the Joystick, Zoom, Focus, and exposure settings. Add and access set points for your cameras. 8 Separate sources are supported with direct access through PGM/PVW control buttons. Add Logo’s and subtitles like a professional into the live broadcast.



NOTE: Pre-orders should be available by the last half of July 2022. You will be charge upon ordering your device.

Parameters

Video standard



FHD

Video processing capability

input:

  Up to :1920x1080p60 * 8

output:

  Up to 1920x1080p60(HDMI)+1920x1080p60(IP)+1280x720p60(IP)

video input

8 channel IP video streaming +1 channel HDMI+ local video

video output

2 channel IP video streaming +1 channel HDMI+ local recording

Live video encoding format

H.264、H.265

Live video bitrate

512Kbps~16384Kbps

Live video bitrate mode

CBR

Network input protocol

RTSP、RTMP

Network output protocol

RTSP、RTMP、NDI|HX(optional)

audio input

RCA*1

TRS6.3mm*2: Compatible with active and passive signals

Video embedded

audio output

RCA*1

Video embedded

Mixer

4 physical tuning + 8 digital tuning

Transition control

T-Bar、button 、touch

Subtitle overlay

support

Logo overlay

support

Tally

DB9 output

USB Port

USB3.0*2+USB2.0*2

Camera Control

Support PTZ, focus, exposure, white balance, preset position control

Power supply

Input voltage

DC 12V

Input Current

3A

Rated power

36W

POE

Optional 802.3AT

Others

Use environment

Indoor

Operating temperature

0℃~40℃

Storage temperature

-10℃~50℃

Dimensions

420*257.52*121.2mm / 16.5”x10.1”x4.8”

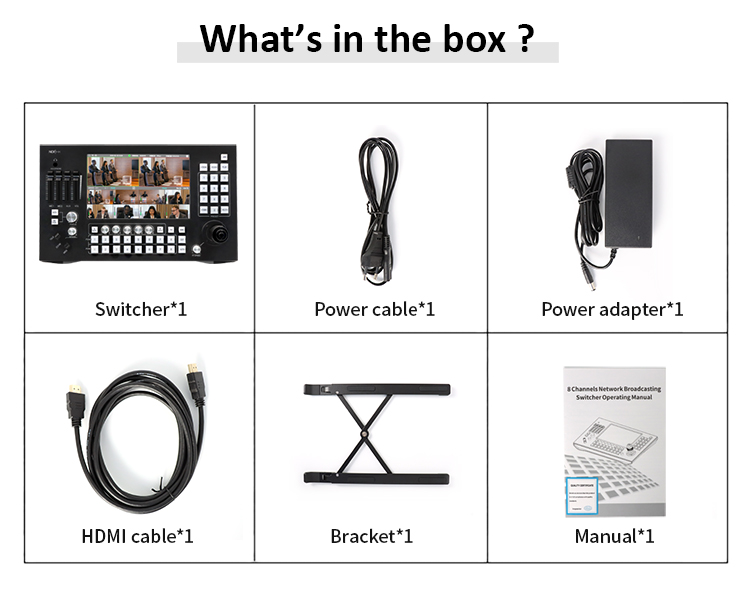

Package

500*330*220mm 9kgs / 19.6”x13”x8.7” 20lbs

Additional information

Weight 6 lbs
Dimensions 18 × 12 × 10 in
Condition

, ,

Technology

NDI, non-NDI
